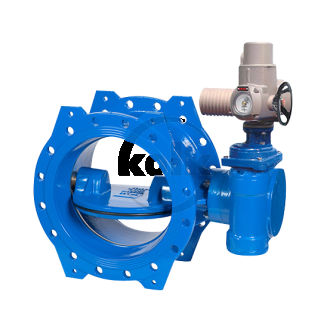

Butterfly valves with ISO topflange EKK-ISO)
Butterfly valves with ISO topflange EKK-ISO)

Butterfly valves with ISO topflange EKK-ISO)

Kolk butterfly valves are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Design acc. to EN 1074-2 and Kiwa BRL-K602/03 with flange drilling acc. to EN 1092-2 (ISO 7005-2). Face to face acc. to ISO 5752 / EN 558 basic series 13 (DIN 3202 F16). The butterfly valve is fitted with a gearbox with ISO top flange. Epoxy coating (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).
Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back
  • Experience since 1922
  • Flexible and reliable
  • Inhouse production and coating
  • Wide range of products on stock
  • Customized Products and Service

Refine your search

Undo

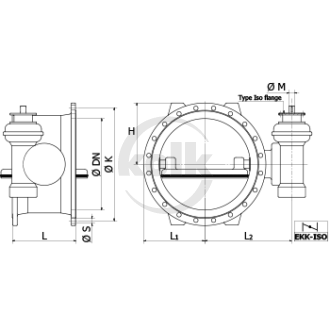

Sort Article PN ø DN [mm] L [mm] L1 [mm] L2 [mm] H [mm] Type KG More info Qty Select
0 EKK-ISO 150 PN10/16 150 210 143 202 142 F07 29
1 EKK-ISO 200 PN10 200 230 170 245 170 F10 42
2 EKK-ISO 250 PN10 250 250 298 275 198 F10 55
3 EKK-ISO 300 PN10 300 270 223 310 235 F10 83
4 EKK-ISO 350 PN10 350 290 253 357 258 F10 109
5 EKK-ISO 400 PN10 400 310 283 407 292 F10 135
6 EKK-ISO 450 PN10 450 330 308 417 318 F10 154
7 EKK-ISO 500 PN10 500 350 335 475 335 F10 213
8 EKK-ISO 600 PN10 600 390 392 550 390 F10 318
9 EKK-ISO 700 PN10 700 430 448 620 453 F10 480
10 EKK-ISO 800 PN10 800 470 510 675 513 F10 638
11 EKK-ISO 900 PN10 900 510 578 750 578 F10 918
12 EKK-ISO 1000 PN10 1000 550 653 840 620 F10 1175
13 EKK-ISO 1200 PN10 1200 630 768 926 742 F10 1874
14 EKK-ISO 200 PN16 200 230 170 245 170 F10 42
15 EKK-ISO 250 PN16 250 250 198 275 198 F10 55
16 EKK-ISO 300 PN16 300 270 223 310 235 F10 83
17 EKK-ISO 350 PN16 350 290 253 357 258 F10 114
18 EKK-ISO 400 PN16 400 310 283 407 292 F10 142
19 EKK-ISO 450 PN16 450 330 308 417 318 F10 170
20 EKK-ISO 500 PN16 500 350 335 475 335 F10 236
21 EKK-ISO 600 PN16 600 390 392 550 390 F10 358
22 EKK-ISO 700 PN16 700 430 448 620 453 F10 510
23 EKK-ISO 800 PN16 800 470 510 675 513 F10 668
24 EKK-ISO 900 PN16 900 510 578 750 578 F10 918
25 EKK-ISO 1000 PN16 1000 550 653 840 620 F10 1245
26 EKK-ISO 1200 PN16 1200 630 768 926 742 F14 2140
