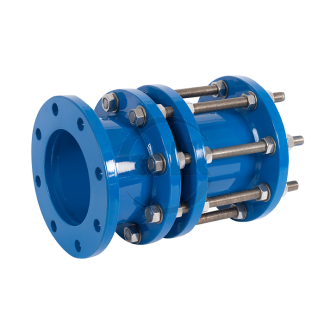

Dismantling joints (RO-4) PN10/16

Kolk dismantling joints are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50) with standard flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662). When ordering specify counterflange material (PE or ductile iron/steel) and quality for tie rods (A2/A4, hot dip or galvanized).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

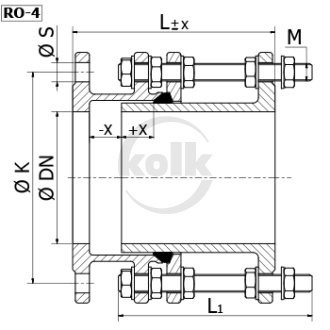

Sort	Article	PN	ø DN [mm]	L [mm]	X [mm]	L1 [mm]	M	KG
0	RO-4 50	PN10/16	50	300	25	250	M16	14
1	RO-4 65	PN10/16	65	300	25	250	M16	17
2	RO-4 80	PN10/16	80	300	25	250	M16	22
3	RO-4 100	PN10/16	100	300	25	250	M16	28
4	RO-4 125	PN10/16	125	300	25	250	M16	35
5	RO-4 150	PN10/16	150	350	25	290	M20	50
6	RO-4 200	PN10	200	350	25	290	M20	62
7	RO-4 250	PN10	250	350	25	290	M20	90
8	RO-4 300	PN10	300	350	25	290	M20	102
9	RO-4 350	PN10	350	350	25	290	M20	126
10	RO-4 400	PN10	400	375	25	320	M24	160
11	RO-4 450	PN10	450	375	25	320	M24	178
12	RO-4 500	PN10	500	375	25	320	M24	200
13	RO-4 600	PN10	600	400	25	340	M27	270
14	RO-4 700	PN10	700	400	25	340	M27	330
15	RO-4 800	PN10	800	450	25	380	M30	350
16	RO-4 900	PN10	900	450	25	380	M30	520
17	RO-4 1000	PN10	1000	475	25	420	M33	635
18	RO-4 200	PN16	200	350	25	290	M20	62
19	RO-4 250	PN16	250	375	25	320	M24	90
20	RO-4 300	PN16	300	375	25	320	M24	102
21	RO-4 350	PN16	350	425	25	350	M24	126
22	RO-4 400	PN16	400	425	25	350	M27	160
23	RO-4 450	PN16	450	425	25	350	M27	178
24	RO-4 500	PN16	500	450	25	380	M30	200
25	RO-4 600	PN16	600	475	25	400	M33	270
26	RO-4 700	PN16	700	475	25	400	M33	330
27	RO-4 800	PN16	800	525	25	450	M36	350
28	RO-4 900	PN16	900	525	25	450	M36	520
29	RO-4 1000	PN16	1000	550	25	450	M39	635
