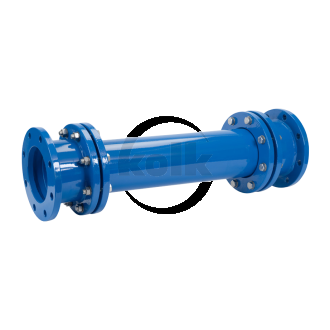

Flexible pipe joint (RG) PN10/16

Kolk flexible pipe joints are made of steel with flange drilling according to EN 1092-2 (ISO 7005-2). Epoxy coating (Resicoat®) according to EN 14901 (DIN 30,677-2) and GSK certified (RAL-GZ 662). When ordering, specify the length and the quality of the bolts and nuts (stainless steel A2 / A4, hot dip or galvanized). The length (L) is determined by the required movement (X). The values shown in the table are for L = 1 m.

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

Sort	Article	PN	ø DN [mm]	L [mm]	X [mm]	L1 [mm]	L2 [mm]
0	RG 100	PN10/16	100	1000	50	720	140
1	RG 125	PN10/16	125	1000	50	720	140
2	RG 150	PN10/16	150	1000	50	720	140
3	RG 200	PN10	200	1000	50	720	140
4	RG 250	PN10	250	1000	45	640	180
5	RG 300	PN10	300	1000	45	640	180
6	RG 350	PN10	350	1000	45	640	180
7	RG 400	PN10	400	1000	45	640	180
8	RG 450	PN10	450	1000	45	640	180
9	RG 500	PN10	500	1000	45	640	180
10	RG 600	PN10	600	1000	42	600	200
11	RG 700	PN10	700	1000	42	600	200
12	RG 800	PN10	800	1000	42	600	200
13	RG 900	PN10	900	1000	42	600	200
14	RG 1000	PN10	1000	1000	42	600	200
15	RG 1100	PN10	1100	1000	42	600	200
16	RG 1200	PN10	1200	1000	35	500	250
17	RG 1400	PN10	1400	1000	35	500	250
18	RG 1500	PN10	1500	1000	35	500	250
19	RG 1600	PN10	1600	1000	35	500	250
20	RG 1800	PN10	1800	1000	35	500	250
21	RG 200	PN16	200	1000	50	720	140
22	RG 250	PN16	250	1000	45	640	180
23	RG 300	PN16	300	1000	45	640	180
24	RG 350	PN16	350	1000	45	640	180
25	RG 400	PN16	400	1000	45	640	180
26	RG 450	PN16	450	1000	45	640	180
27	RG 500	PN16	500	1000	45	640	180
28	RG 600	PN16	600	1000	35	500	250
29	RG 700	PN16	700	1000	35	500	250
30	RG 800	PN16	800	1000	35	500	250
31	RG 900	PN16	900	1000	35	500	250
32	RG 1000	PN16	1000	1000	35	500	250
33	RG 1100	PN16	1100	1000	28	400	300
34	RG 1200	PN16	1200	1000	28	400	300
35	RG 1400	PN16	1400	1000	28	400	300
36	RG 1500	PN16	1500	1000	28	400	300
37	RG 1600	PN16	1600	1000	28	400	300
38	RG 1800	PN16	1800	1000	28	400	300
