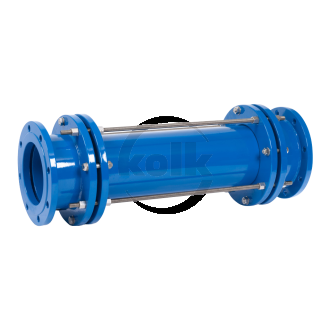

Flexible pipe joint tensile (RGV) PN10/16

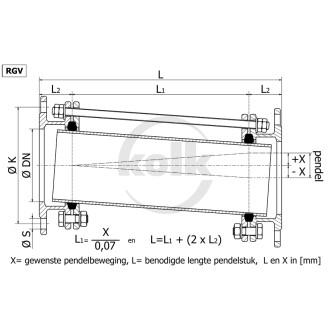

Kolk flexible tensile pipe joints are made of steel with flange drilling according to EN 1092-2 (ISO 7005-2). Epoxy coating (Resicoat®) according to EN 14901 (DIN 30,677-2) and GSK certified (RAL-GZ 662). When ordering, specify the length and the quality of the bolts and nuts (stainless steel A2 / A4, hot dip or galvanized). The length of the shuttle (L) is determined by the required movement (X). The values shown in the table are for L = 1 m.

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

Sort	Article	PN	ø DN [mm]	L [mm]	X [mm]	L1 [mm]	L2 [mm]
0	RGV 100	PN10/16	100	1000	50	720	140
1	RGV 125	PN10/16	125	1000	50	720	140
2	RGV 150	PN10/16	150	1000	50	720	140
3	RGV 200	PN10	200	1000	50	720	140
4	RGV 250	PN10	250	1000	45	640	180
5	RGV 300	PN10	300	1000	45	640	180
6	RGV 350	PN10	350	1000	45	640	180
7	RGV 400	PN10	400	1000	45	640	180
8	RGV 450	PN10	450	1000	45	640	180
9	RGV 500	PN10	500	1000	45	640	180
10	RGV 600	PN10	600	1000	42	600	200
11	RGV 700	PN10	700	1000	42	600	200
12	RGV 800	PN10	800	1000	42	600	200
13	RGV 900	PN10	900	1000	42	600	200
14	RGV 1000	PN10	1000	1000	42	600	200
15	RGV 1100	PN10	1100	1000	42	600	200
16	RGV 1200	PN10	1200	1000	35	500	250
17	RGV 1400	PN10	1400	1000	35	500	250
18	RGV 1500	PN10	1500	1000	35	500	250
19	RGV 1600	PN10	1600	1000	35	500	250
20	RGV 1800	PN10	1800	1000	35	500	250
21	RGV 200	PN16	200	1000	50	720	140
22	RGV 250	PN16	250	1000	45	640	180
23	RGV 300	PN16	300	1000	45	640	180
24	RGV 350	PN16	350	1000	45	640	180
25	RGV 400	PN16	400	1000	45	640	180
26	RGV 450	PN16	450	1000	45	640	180
27	RGV 500	PN16	500	1000	45	640	180
28	RGV 600	PN16	600	1000	35	500	250
29	RGV 700	PN16	700	1000	35	500	250
30	RGV 800	PN16	800	1000	35	500	250
31	RGV 900	PN16	900	1000	35	500	250
32	RGV 1000	PN16	1000	1000	35	500	250
33	RGV 1100	PN16	1100	1000	28	400	300
34	RGV 1200	PN16	1200	1000	28	400	300
35	RGV 1400	PN16	1400	1000	28	400	300
36	RGV 1500	PN16	1500	1000	28	400	300
37	RGV 1600	PN16	1600	1000	28	400	300
38	RGV 1800	PN16	1800	1000	28	400	300
