Double socket T with flanged branch (MMA-KS-tv) PN10
Double socket T with flanged branch (MMA-KS-tv) PN10

Double socket T with flanged branch (MMA-KS-tv) PN10

Kolk fittings for PE/PVC are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Design acc. to EN 12842, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).
Download Datasheet
Download Montagehandleiding

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back
  • Experience since 1922
  • Flexible and reliable
  • Inhouse production and coating
  • Wide range of products on stock
  • Customized Products and Service

Refine your search

Undo

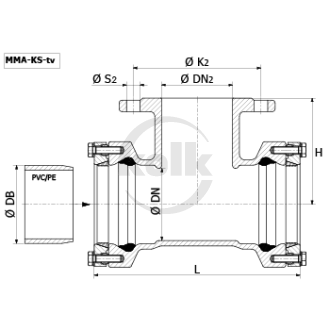

Sort Article PN ø DN [mm] ø DN2 [mm] ø DB [mm] L [mm] H [mm] KG More info Qty Select
0 MMA-KS-tv 63/50 PN10/16 50 50 63 235 100 8
1 MMA-KS-tv 75/65 PN10/16 65 65 75 250 110 9
2 MMA-KS-tv 90/80 PN10/16 80 80 90 270 140 11
3 MMA-KS-tv 110/50 PN10/16 100 50 110 240 150 10
4 MMA-KS-tv 110/80 PN10/16 100 80 110 240 150 12
5 MMA-KS-tv 110/100 PN10/16 100 100 110 290 150 12
6 MMA-KS-tv 125/80 PN10/16 125 80 125 275 160 14
7 MMA-KS-tv 125/100 PN10/16 125 100 125 295 160 15
8 MMA-KS-tv 125/125 PN10/16 125 125 125 340 160 15
9 MMA-KS-tv 140/80 PN10/16 125 80 140 290 170 15
10 MMA-KS-tv 140/100 PN10/16 125 100 140 310 170 15
11 MMA-KS-tv 140/125 PN10/16 125 125 140 335 170 16
12 MMA-KS-tv 160/80 PN10/16 150 80 160 300 180 17
13 MMA-KS-tv 160/100 PN10/16 150 100 160 320 180 17
14 MMA-KS-tv 160/125 PN10/16 150 125 160 360 180 18
15 MMA-KS-tv 160/150 PN10/16 150 150 160 380 180 20
16 MMA-KS-tv 180/80 PN10/16 150 80 180 330 200 24
17 MMA-KS-tv 180/100 PN10/16 150 100 180 355 200 26
18 MMA-KS-tv 180/125 PN10/16 150 125 180 380 200 29
19 MMA-KS-tv 180/150 PN10/16 150 150 180 415 200 32
20 MMA-KS-tv 200/80 PN10/16 200 80 200 400 220 39
21 MMA-KS-tv 200/100 PN10/16 200 100 200 420 220 40
22 MMA-KS-tv 200/125 PN10/16 200 125 200 440 220 41
23 MMA-KS-tv 200/150 PN10/16 200 150 200 450 220 46
24 MMA-KS-tv 200/200 PN10 200 200 200 480 220 47
25 MMA-KS-tv 225/80 PN10/16 200 80 225 400 230 41
26 MMA-KS-tv 225/100 PN10/16 200 100 225 420 230 43
27 MMA-KS-tv 225/125 PN10/16 200 125 225 440 230 45
28 MMA-KS-tv 225/150 PN10/16 200 150 225 460 230 49
29 MMA-KS-tv 225/200 PN10 200 200 225 480 230 51
30 MMA-KS-tv 200/200 PN16 200 200 200 480 220 48
31 MMA-KS-tv 225/200 PN16 200 200 225 480 230 51
