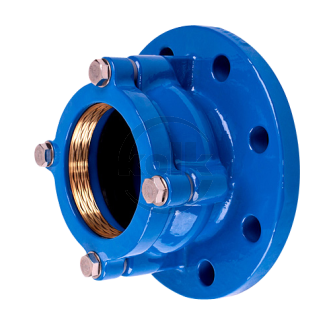

Flange-socket (E-tv) PN10

Kolk fittings for PE/PVC are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Design based upon EN 12842, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Download Datasheet
Download Montagehandleiding

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

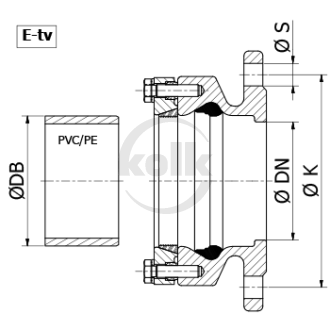

Sort	Article	PN	ø DN [mm]	ø DB [mm]	L [mm]	KG
0	E-tv 50/63	PN10/16	50	63	90	3
1	E-tv 80/63	PN10/16	80	63	90	5
2	E-tv 80/75	PN10/16	80	75	95	5
3	E-tv 80/90	PN10/16	80	90	95	5
4	E-tv 100/90	PN10/16	100	90	95	7
5	E-tv 100/110	PN10/16	100	110	95	6
6	E-tv 100/125	PN10/16	100	125	95	8
7	E-tv 125/110	PN10/16	125	110	100	8
8	E-tv 125/125	PN10/16	125	125	100	8
9	E-tv 125/140	PN10/16	125	140	108	9
10	E-tv 150/160	PN10/16	150	160	115	10
11	E-tv 200/200	PN10	200	200	135	18
12	E-tv 200/225	PN10	200	225	138	18
13	E-tv 250/250	PN10	250	250	142	22
14	E-tv 250/280	PN10	250	280	142	29
15	E-tv 300/315	PN10	300	315	250	37
16	E-tv 300/355	PN10	300	355	264	44
17	E-tv 350/355	PN10	350	355	220	43
18	E-tv 400/400	PN10	400	400	264	60
19	E-tv 450/450	PN10	400	450	284	90
20	E-tv 500/500	PN10	500	500	285	115
21	E-tv 600/630	PN10	600	630	275	145
22	E-tv 200/200	PN16	200	200	135	18
23	E-tv 200/225	PN16	200	225	138	18
24	E-tv 250/250	PN16	250	250	142	22
25	E-tv 250/280	PN16	250	280	142	29
26	E-tv 300/315	PN16	300	315	250	37
27	E-tv 300/355	PN16	300	355	264	44
28	E-tv 350/355	PN16	350	355	220	43
29	E-tv 400/400	PN16	400	400	264	60
30	E-tv 450/450	PN16	400	450	284	90
31	E-tv 500/500	PN16	500	500	285	115
32	E-tv 600/630	PN16	600	630	275	145
