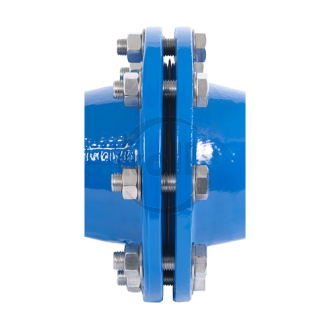

Flange gasket kits ductile iron (PS-G/G) A2/A4 PN10/16

Kolk stainless steel gasket kits are suitable for flanged connections in (drinking)water and gas pipelines. Kolk gasket sets consist of bolts (A2), nuts (A4 coated), washers (A2) and a gasket; EPDM / NBR-DUO rubber with steel core (DVGW, W270, KTW and Belgaqua certified). Temperature range -25 ° / + 70 ° C.

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

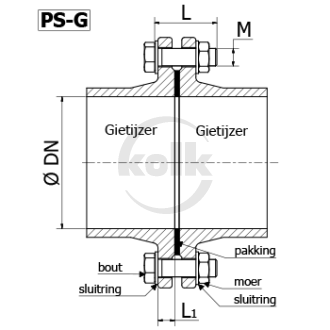

Sort	Article	PN	ø DN [mm]	L [mm]	L1 [mm]	M	# Holes[DN]
0	PS-G 50 A2/A4	PN10	50	65	19	M16	4
1	PS-G 65 A2/A4	PN10	65	65	19	M16	4
2	PS-G 80 A2/A4	PN10	80	65	19	M16	8
3	PS-G 100 A2/A4	PN10	100	70	19	M16	8
4	PS-G 125 A2/A4	PN10	125	70	19	M16	8
5	PS-G 150 A2/A4	PN10	150	80	19	M20	8
6	PS-G 200 A2/A4	PN10	200	80	20	M20	8
7	PS-G 250 A2/A4	PN10	250	90	22	M20	12
8	PS-G 300 A2/A4	PN10	300	90	25	M20	12
9	PS-G 350 A2/A4	PN10	350	90	25	M20	16
10	PS-G 400 A2/A4	PN10	400	100	25	M24	16
11	PS-G 450 A2/A4	PN10	450	100	26	M24	20
12	PS-G 500 A2/A4	PN10	500	100	27	M24	20
13	PS-G 600 A2/A4	PN10	600	110	30	M27	20
14	PS-G 700 A2/A4	PN10	700	120	32	M27	24
15	PS-G 800 A2/A4	PN10	800	120	35	M30	24
16	PS-G 900 A2/A4	PN10	900	120	38	M30	28
17	PS-G 1000 A2/A4	PN10	1000	140	40	M33	-
18	PS-G 1200 A2/A4	PN10	1200	140	45	M36	32
19	PS-G 200 A2/A4	PN16	200	80	19	M20	12
20	PS-G 250 A2/A4	PN16	250	90	22	M24	12
21	PS-G 300 A2/A4	PN16	300	90	24	M24	12
22	PS-G 350 A2/A4	PN16	350	90	26	M24	16
23	PS-G 400 A2/A4	PN16	400	110	28	M27	16
24	PS-G 450 A2/A4	PN16	450	120	30	M27	20
25	PS-G 500 A2/A4	PN16	500	120	32	M30	20
26	PS-G 600 A2/A4	PN16	600	140	36	M33	20
27	PS-G 700 A2/A4	PN16	700	150	40	M33	24
28	PS-G 800 A2/A4	PN16	800	160	43	M36	24
29	PS-G 900 A2/A4	PN16	900	160	46	M36	28
30	PS-G 1000 A2/A4	PN16	1000	160	50	M39	-
31	PS-G 1200 A2/A4	PN16	1200	180	57	M45	32
