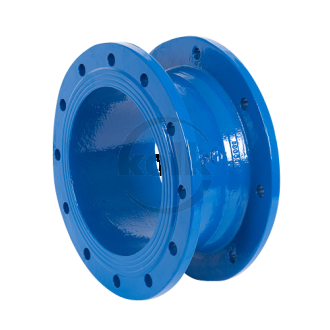

Adaptor flanged pipe (FFO) PN10/DN1882

Kolk flanged fittings are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50) or steel fabricated. Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662). Adaptor flanged pipe type FFO make adaptation from different flange drillings possible. The table contains only the standard lengths, non standard lengths are possible.

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

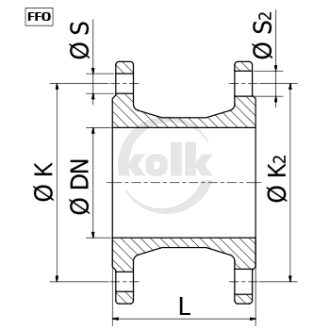

Sort	Article	PN	ø DN [mm]	L [mm]	Type	KG
0	FFO 80	PN10	80	200	PN10/1882	9
1	FFO 100	PN10	100	200	PN10/1882	10
2	FFO 125	PN10	125	200	PN10/1882	13
3	FFO 150	PN10	150	200	PN10/1882	16
4	FFO 200	PN10	200	200	PN10/1882	23
5	FFO 250	PN10	250	200	PN10/1882	32
6	FFO 300	PN10	300	200	PN10/1882	40
7	FFO 350	PN10	350	200	PN10/1882	48
8	FFO 400	PN10	400	200	PN10/1882	56
9	FFO 450	PN10	450	200	PN10/1882	88
10	FFO 500	PN10	500	200	PN10/1882	104
11	FFO 600	PN10	600	200	PN10/1882	150
12	FFO 700	PN10	700	200	PN10/1882	160
13	FFO 800	PN10	800	200	PN10/1882	210
14	FFO 900	PN10	900	300	PN10/1882	240
15	FFO 1000	PN10	1000	300	PN10/1882	330
16	FFO 1200	PN10	1200	300	PN10/1882	510
