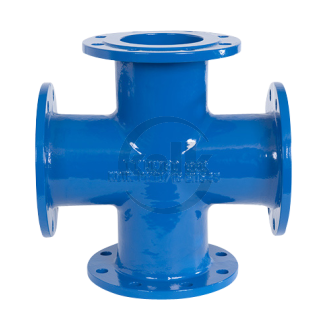

All flanged cross (TT) PN10/16

Kolk flanged fittings are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Designed acc. to EN 545, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

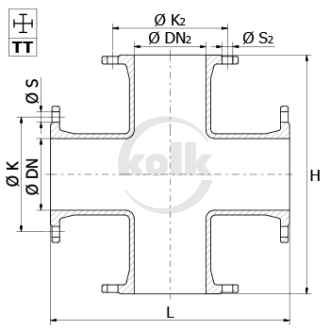

Sort	Article	PN	ø DN [mm]	ø DN2 [mm]	L [mm]	H [mm]	KG
0	TT 50/50	PN10/16	50	50	300	300	15
1	TT 80/80	PN10/16	80	80	330	330	20
2	TT 100/100	PN10/16	100	100	360	360	26
3	TT 125/125	PN10/16	125	125	400	400	34
4	TT 150/150	PN10/16	150	150	440	440	40
5	TT 200/200	PN10	200	200	520	520	60
6	TT 250/250	PN10	250	250	700	700	104
7	TT 300/300	PN10	300	300	800	800	136
8	TT 350/350	PN10	350	350	850	850	180
9	TT 400/400	PN10	400	400	900	900	220
10	TT 450/450	PN10	450	450	950	950	310
11	TT 500/500	PN10	500	500	1000	1000	380
12	TT 600/600	PN10	600	600	1100	1100	530
13	TT 700/700	PN10	700	700	1200	1200	660
14	TT 800/800	PN10	800	800	1350	1350	980
15	TT 900/900	PN10	900	900	1500	1500	1200
16	TT 1000/1000	PN10	1000	1000	1650	1650	1450
17	TT 200/200	PN16	200	200	520	520	60
18	TT 250/250	PN16	250	250	700	700	104
19	TT 300/300	PN16	300	300	800	800	136
20	TT 350/350	PN16	350	350	850	850	180
21	TT 400/400	PN16	400	400	900	900	250
22	TT 450/450	PN16	450	450	950	950	345
23	TT 500/500	PN16	500	500	1000	1000	430
24	TT 600/600	PN16	600	600	1100	1100	550
25	TT 700/700	PN16	700	700	1200	1200	690
26	TT 800/800	PN16	800	800	1350	1350	1020
27	TT 900/900	PN16	900	900	1500	1500	1250
28	TT 1000/1000	PN16	1000	1000	1650	1650	1500
