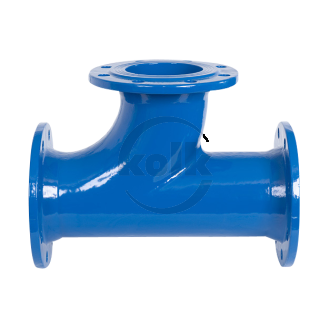

Radial Tee (SCH) PN10/16

Kolk flanged fittings are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Design based upon EN 545 and flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

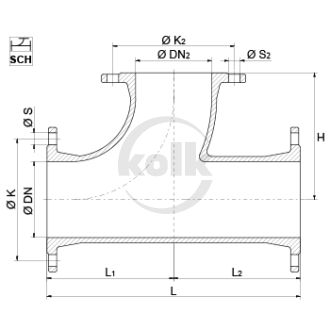

Sort	Article	PN	ø DN [mm]	ø DN2 [mm]	L [mm]	H [mm]	KG
0	SCH 80/80	PN10/16	80	80	360	180	16
1	SCH 100/100	PN10/16	100	100	400	200	20
2	SCH 125/125	PN10/16	125	125	450	225	28
3	SCH 150/150	PN10/16	150	150	500	250	39
4	SCH 200/150	PN10	200	150	600	275	54
5	SCH 200/200	PN10	200	200	600	300	54
6	SCH 250/150	PN10	250	150	700	300	82
7	SCH 250/200	PN10	250	200	700	325	78
8	SCH 250/250	PN10	250	250	700	350	84
9	SCH 300/150	PN10	300	150	800	325	102
10	SCH 300/200	PN10	300	200	800	350	102
11	SCH 300/250	PN10	300	250	800	375	114
12	SCH 300/300	PN10	300	300	800	400	114
13	SCH 350/150	PN10	350	150	900	350	110
14	SCH 350/200	PN10	350	200	900	375	116
15	SCH 350/250	PN10	350	250	900	400	126
16	SCH 350/300	PN10	350	300	900	425	140
17	SCH 350/350	PN10	350	350	900	450	145
18	SCH 400/150	PN10	400	150	1000	375	145
19	SCH 400/200	PN10	400	200	1000	400	150
20	SCH 400/250	PN10	400	250	1000	425	155
21	SCH 400/300	PN10	400	300	1000	450	180
22	SCH 400/350	PN10	400	350	1000	475	170
23	SCH 400/400	PN10	400	400	1000	500	180
24	SCH 450/250	PN10	450	250	1000	400	330
25	SCH 450/300	PN10	450	300	1000	425	350
26	SCH 450/350	PN10	450	350	1000	450	355
27	SCH 450/400	PN10	450	400	1000	475	370
28	SCH 450/450	PN10	450	450	1000	500	390
29	SCH 500/200	PN10	500	200	1000	450	255
30	SCH 500/250	PN10	500	250	1000	475	260
31	SCH 500/300	PN10	500	300	1000	500	270
32	SCH 500/350	PN10	500	350	1000	525	240
33	SCH 500/400	PN10	500	400	1000	550	245
34	SCH 500/450	PN10	500	450	1000	575	380
35	SCH 500/500	PN10	500	500	1200	600	390
36	SCH 600/200	PN10	600	200	1100	425	290
37	SCH 600/250	PN10	600	250	1100	450	310
38	SCH 600/300	PN10	600	300	1100	475	316
39	SCH 600/350	PN10	600	350	1100	500	320
40	SCH 600/400	PN10	600	400	1100	525	354
41	SCH 600/450	PN10	600	450	1100	550	360
42	SCH 600/500	PN10	600	500	1100	575	370
43	SCH 600/600	PN10	600	600	1200	600	560
44	SCH 700/400	PN10	700	400	1000	650	390
45	SCH 700/450	PN10	700	450	1000	675	510
46	SCH 700/500	PN10	700	500	1400	700	520
47	SCH 700/600	PN10	700	600	1200	725	520
48	SCH 700/700	PN10	700	700	1500	750	550
49	SCH 800/400	PN10	800	400	920	615	500
50	SCH 800/500	PN10	800	500	1020	620	650
51	SCH 800/600	PN10	800	600	1350	645	650
52	SCH 800/700	PN10	800	700	1350	645	650
53	SCH 800/800	PN10	800	800	1600	800	1100
54	SCH 900/400	PN10	900	400	950	675	600
55	SCH 900/500	PN10	900	500	1080	690	800
56	SCH 900/600	PN10	900	600	1500	705	880
57	SCH 900/700	PN10	900	700	1500	720	900
58	SCH 900/800	PN10	900	800	1500	735	1000
59	SCH 900/900	PN10	900	900	2000	1000	1250
60	SCH 1000/400	PN10	1000	400	990	735	800
61	SCH 1000/500	PN10	1000	500	1100	750	900
62	SCH 1000/600	PN10	1000	600	1650	765	1000
63	SCH 1000/700	PN10	1000	700	1650	780	1200
64	SCH 1000/800	PN10	1000	800	1650	795	1250
65	SCH 1000/900	PN10	1000	900	1650	810	1250
66	SCH 1000/1000	PN10	1000	1000	2200	1100	1350
67	SCH 200/200	PN16	200	200	600	300	54
68	SCH 250/150	PN16	250	150	700	300	82
69	SCH 250/200	PN16	250	200	700	325	78
70	SCH 250/250	PN16	250	250	700	350	84
71	SCH 300/150	PN16	300	150	800	325	98
72	SCH 300/200	PN16	300	200	800	350	102
73	SCH 300/250	PN16	300	250	800	375	114
74	SCH 300/300	PN16	300	300	800	400	114
77	SCH 350/250	PN16	350	250	900	400	126
78	SCH 350/300	PN16	350	300	900	425	140
79	SCH 350/350	PN16	350	350	900	450	145
80	SCH 400/150	PN16	400	150	1000	375	142
81	SCH 400/200	PN16	400	200	1000	400	150
82	SCH 400/250	PN16	400	250	1000	425	155
83	SCH 400/300	PN16	400	300	1000	450	180
84	SCH 400/350	PN16	400	350	1000	475	170
85	SCH 400/400	PN16	400	400	1000	500	180
86	SCH 450/250	PN16	450	250	1000	400	330
87	SCH 450/300	PN16	450	300	1000	425	350
88	SCH 450/350	PN16	450	350	1000	450	355
89	SCH 450/400	PN16	450	400	1000	475	370
90	SCH 450/450	PN16	450	450	1000	500	390
91	SCH 500/200	PN16	500	200	1000	450	245
92	SCH 500/250	PN16	500	250	1000	475	255
93	SCH 500/300	PN16	500	300	1000	500	270
94	SCH 500/350	PN16	500	350	1000	525	240
95	SCH 500/400	PN16	500	400	1000	550	285
96	SCH 500/450	PN16	500	450	1000	575	375
97	SCH 500/500	PN16	500	500	1200	600	390
98	SCH 600/200	PN16	600	200	1100	425	285
99	SCH 600/250	PN16	600	250	1100	450	295
100	SCH 600/300	PN16	600	300	1100	475	316
101	SCH 600/350	PN16	600	350	1100	500	320
102	SCH 600/400	PN16	600	400	1100	525	354
103	SCH 600/450	PN16	600	450	1100	550	375
104	SCH 600/500	PN16	600	500	1100	575	370
105	SCH 600/600	PN16	600	600	1200	600	560
106	SCH 700/400	PN16	700	400	1000	650	390
107	SCH 700/450	PN16	700	450	1000	675	410
108	SCH 700/500	PN16	700	500	1400	700	520
109	SCH 700/600	PN16	700	600	1200	725	520
110	SCH 700/700	PN16	700	700	1500	750	550
111	SCH 800/400	PN16	800	400	920	615	500
112	SCH 800/500	PN16	800	500	1020	620	650
113	SCH 800/600	PN16	800	600	1350	645	650
114	SCH 800/700	PN16	800	700	1350	645	650
115	SCH 800/800	PN16	800	800	1600	800	1100
116	SCH 900/400	PN16	900	400	950	675	600
117	SCH 900/500	PN16	900	500	1080	690	800
118	SCH 900/600	PN16	900	600	1500	705	880
119	SCH 900/700	PN16	900	700	1500	720	900
120	SCH 900/800	PN16	900	800	1500	735	1000
121	SCH 900/900	PN16	900	900	2000	1000	1080
122	SCH 1000/400	PN16	1000	400	990	735	800
123	SCH 1000/500	PN16	1000	500	1100	750	900
124	SCH 1000/600	PN16	1000	600	1650	765	1000
125	SCH 1000/700	PN16	1000	700	1650	780	1200
126	SCH 1000/800	PN16	1000	800	1650	795	1250
127	SCH 1000/900	PN16	1000	900	1650	810	1250
128	SCH 1000/1000	PN16	1000	1000	2200	1100	1745
