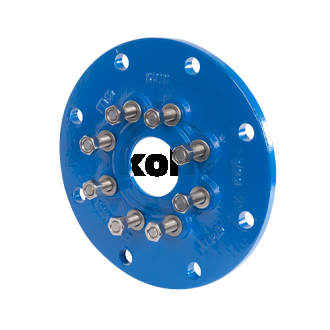

Studded reducer flange (Xr) PN10/16

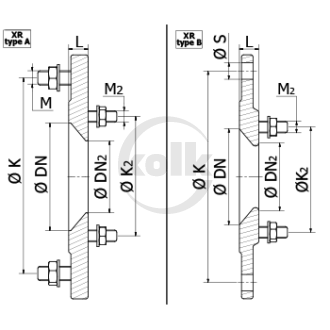

Kolk flanged fittings are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50) or steel fabricated. Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662). Studded reducer flanges type Xr makes reductions in nominal diameter possible within very short length. Available in two types (see detail drawings). When ordering specify counter flange and the material of the studded ends (A2/A4, hot dip or galvanized).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

Sort	Article	PN	ø DN [mm]	ø DN2 [mm]	L [mm]	Type	KG
0	XR 60/40	PN10/16	60	40	20	A	5
1	XR 60/50	PN10/16	60	50	20	A	5
2	XR 65/40	PN10/16	65	40	20	A	5
3	XR 65/50	PN10/16	65	50	20	A	5
4	XR 65/60	PN10/16	65	60	20	A	6
5	XR 80/40-4	PN10	80	40	20	A	6
6	XR 80/50-4	PN10	80	50	20	A	6
7	XR 80/60-4	PN10	80	60	20	A	6
8	XR 80/65-4	PN10	80	65	20	A	6
9	XR 80/40	PN10/16	80	40	20	A	6
10	XR 80/50	PN10/16	80	50	20	A	6
11	XR 80/60	PN10/16	80	60	20	A	6
12	XR 80/65	PN10/16	80	65	20	A	6
13	XR 100/40	PN10/16	100	40	20	A	8
14	XR 100/50	PN10/16	100	50	20	A	8
15	XR 100/60	PN10/16	100	60	20	A	8
16	XR 100/65	PN10/16	100	65	20	A	8
17	XR 100/80-4	PN10	100	80	20	A	8
18	XR 100/80	PN10/16	100	80	20	A	8
19	XR 125/50	PN10/16	125	50	20	A	8
20	XR 125/60	PN10/16	125	60	20	A	7
21	XR 125/65	PN10/16	125	65	20	A	8
22	XR 125/80-4	PN10	125	80	20	A	8
23	XR 125/80	PN10/16	125	80	20	A	8
24	XR 125/100	PN10/16	125	100	20	A	7
25	XR 150/50	PN10/16	150	50	20	B	11
26	XR 150/60	PN10/16	150	60	20	B	11
27	XR 150/65	PN10/16	150	65	20	B	11
28	XR 150/80-4	PN10	150	80	20	B	11
29	XR 150/80	PN10/16	150	80	20	B	11
30	XR 150/100	PN10/16	150	100	20	A	11
31	XR 150/125	PN10/16	150	125	20	A	11
32	XR 200/50	PN10	200	50	20	B	15
33	XR 200/60	PN10	200	60	20	B	15
34	XR 200/65	PN10	200	65	20	B	15
35	XR 200/80-4	PN10	200	80	20	B	15
36	XR 200/80	PN10	200	80	20	B	15
37	XR 200/100	PN10	200	100	20	B	15
38	XR 200/125	PN10	200	125	20	B	15
39	XR 200/150	PN10	200	150	30	A	12
40	XR 250/50	PN10	250	50	20	B	22
41	XR 250/60	PN10	250	60	20	B	22
42	XR 250/65	PN10	250	65	20	B	22
43	XR 250/80-4	PN10	250	80	20	B	22
44	XR 250/80	PN10	250	80	20	B	22
45	XR 250/100	PN10	250	100	20	B	22
46	XR 250/125	PN10	250	125	20	B	22
47	XR 250/150	PN10	250	150	30	B	22
48	XR 250/200	PN10	250	200	30	A	22
49	XR 300/50	PN10	300	50	25	B	28
50	XR 300/60	PN10	300	60	25	B	28
51	XR 300/65	PN10	300	65	25	B	28
52	XR 300/80-4	PN10	300	80	25	B	28
53	XR 300/80	PN10	300	80	25	B	28
54	XR 300/100	PN10	300	100	25	B	28
55	XR 300/125	PN10	300	125	25	B	28
56	XR 300/150	PN10	300	150	30	B	28
57	XR 300/200	PN10	300	200	30	B	28
58	XR 300/250	PN10	300	250	30	A	28
59	XR 350/80-4	PN10	350	80	35	B	27
60	XR 350/80	PN10	350	80	35	B	27
61	XR 350/100	PN10	350	100	35	B	27
62	XR 350/125	PN10	350	125	35	B	27
63	XR 350/150	PN10	350	150	35	B	27
64	XR 350/200	PN10	350	200	35	B	37
65	XR 350/250	PN10	350	250	35	B	37
66	XR 350/300	PN10	350	300	35	A	37
67	XR 400/80-4	PN10	400	80	30	B	48
68	XR 400/80	PN10	400	80	30	B	48
69	XR 400/100	PN10	400	100	30	B	48
70	XR 400/125	PN10	400	125	30	B	48
71	XR 400/150	PN10	400	150	30	B	50
72	XR 400/200	PN10	400	200	30	B	50
73	XR 400/250	PN10	400	250	30	B	52
74	XR 400/300	PN10	400	300	30	B	52
75	XR 400/350	PN10	400	350	40	A	52
76	XR 500/80-4	PN10	500	80	50	B	80
77	XR 500/80	PN10	500	80	30	B	80
78	XR 500/100	PN10	500	100	30	B	80
79	XR 500/150	PN10	500	150	30	B	80
80	XR 500/200	PN10	500	200	30	B	80
81	XR 500/250	PN10	500	250	30	B	80
82	XR 500/300	PN10	500	300	30	B	90
83	XR 500/350	PN10	500	350	50	B	90
84	XR 500/400	PN10	500	400	50	A	90
85	XR 600/80-4	PN10	600	80	30	B	120
86	XR 600/80	PN10	600	80	30	B	120
87	XR 600/100	PN10	600	100	30	B	120
88	XR 600/150	PN10	600	150	30	B	120
89	XR 600/200	PN10	600	200	30	B	120
90	XR 600/250	PN10	600	250	30	B	120
91	XR 600/300	PN10	600	300	30	B	120
92	XR 600/350	PN10	600	350	30	B	120
93	XR 600/400	PN10	600	400	30	B	120
94	XR 600/450	PN10	600	450	50	A	120
95	XR 600/500	PN10	600	500	50	A	120
96	XR 700/80-4	PN10	700	80	30	B	180
97	XR 700/80	PN10	700	80	30	B	180
98	XR 700/100	PN10	700	100	30	B	180
99	XR 700/150	PN10	700	150	30	B	180
100	XR 700/200	PN10	700	200	30	B	180
101	XR 700/250	PN10	700	250	30	B	180
102	XR 700/300	PN10	700	300	30	B	180
103	XR 700/350	PN10	700	350	30	B	180
104	XR 700/400	PN10	700	400	30	B	180
105	XR 700/450	PN10	700	450	60	B	180
106	XR 700/500	PN10	700	500	60	B	180
107	XR 700/600	PN10	700	600	60	A	180
108	XR 800/80-4	PN10	800	80	35	B	190
109	XR 800/80	PN10	800	80	35	B	190
110	XR 800/100	PN10	800	100	35	B	190
111	XR 800/150	PN10	800	150	35	B	190
112	XR 800/200	PN10	800	200	35	B	190
113	XR 800/250	PN10	800	250	35	B	190
114	XR 800/300	PN10	800	300	35	B	190
115	XR 800/350	PN10	800	350	35	B	190
116	XR 800/400	PN10	800	400	60	B	190
117	XR 800/450	PN10	800	450	60	B	190
118	XR 800/500	PN10	800	500	60	B	190
119	XR 800/600	PN10	800	600	60	B	190
120	XR 800/700	PN10	800	700	60	A	190
121	XR 200/50	PN16	200	60	20	B	15
122	XR 200/60	PN16	200	60	20	B	15
123	XR 200/65	PN16	200	65	20	B	15
124	XR 200/80-4	PN16	200	80	20	B	15
125	XR 200/80	PN16	200	80	20	B	15
126	XR 200/100	PN16	200	100	20	B	15
127	XR 200/125	PN16	200	125	20	B	15
128	XR 200/150	PN16	200	150	30	A	12
129	XR 250/50	PN16	250	80	20	B	22
130	XR 250/60	PN16	250	50	20	B	22
131	XR 250/65	PN16	250	60	20	B	22
132	XR 250/80-4	PN16	250	65	20	B	22
133	XR 250/80	PN16	250	80	20	B	22
134	XR 250/100	PN16	250	100	20	B	22
135	XR 250/125	PN16	250	125	20	B	22
136	XR 250/150	PN16	250	150	30	B	22
137	XR 250/200	PN16	250	200	30	A	22
138	XR 300/50	PN16	300	50	25	B	28
139	XR 300/60	PN16	300	60	25	B	28
140	XR 300/65	PN16	300	65	25	B	28
141	XR 300/80-4	PN16	300	80	25	B	28
142	XR 300/80	PN16	300	80	25	B	28
143	XR 300/100	PN16	300	100	25	B	28
144	XR 300/125	PN16	300	125	25	B	28
145	XR 300/150	PN16	300	150	30	B	28
146	XR 300/200	PN16	300	200	30	B	28
147	XR 300/250	PN16	300	250	30	A	28
148	XR 350/80-4	PN16	350	80	35	B	27
149	XR 350/80	PN16	350	80	35	B	27
150	XR 350/100	PN16	350	100	35	B	27
151	XR 350/125	PN16	350	125	35	B	27
152	XR 350/150	PN16	350	150	35	B	27
153	XR 350/200	PN16	350	200	35	B	37
154	XR 350/250	PN16	350	250	35	B	37
155	XR 350/300	PN16	350	300	35	A	37
156	XR 400/80-4	PN16	400	80	30	B	48
157	XR 400/80	PN16	400	80	30	B	48
158	XR 400/100	PN16	400	100	30	B	48
159	XR 400/125	PN16	400	125	30	B	48
160	XR 400/150	PN16	400	150	30	B	50
161	XR 400/200	PN16	400	200	30	B	50
162	XR 400/250	PN16	400	250	30	B	52
163	XR 400/300	PN16	400	300	30	B	52
164	XR 400/350	PN16	400	350	40	A	52
165	XR 500/80-4	PN16	500	80	50	B	80
166	XR 500/80	PN16	500	80	30	B	80
167	XR 500/100	PN16	500	100	30	B	80
168	XR 500/150	PN16	500	150	30	B	80
169	XR 500/200	PN16	500	200	30	B	80
170	XR 500/250	PN16	500	250	30	B	80
171	XR 500/300	PN16	500	300	30	B	90
172	XR 500/350	PN16	500	350	50	B	90
173	XR 500/400	PN16	500	400	50	A	90
174	XR 600/80-4	PN16	600	80	35	B	120
175	XR 600/80	PN16	600	80	35	B	120
176	XR 600/100	PN16	600	100	35	B	120
177	XR 600/150	PN16	600	150	35	B	120
178	XR 600/200	PN16	600	200	35	B	120
179	XR 600/250	PN16	600	250	35	B	120
180	XR 600/300	PN16	600	300	35	B	120
181	XR 600/350	PN16	600	350	35	B	120
182	XR 600/400	PN16	600	400	35	B	120
183	XR 600/450	PN16	600	450	50	A	120
184	XR 600/500	PN16	600	500	50	A	120
185	XR 700/80-4	PN16	700	80	40	B	180
186	XR 700/80	PN16	700	80	40	B	180
187	XR 700/100	PN16	700	100	40	B	180
188	XR 700/150	PN16	700	150	40	B	180
189	XR 700/200	PN16	700	200	40	B	180
190	XR 700/250	PN16	700	250	40	B	180
191	XR 700/300	PN16	700	300	40	B	180
192	XR 700/350	PN16	700	350	40	B	180
193	XR 700/400	PN16	700	400	40	B	180
194	XR 700/450	PN16	700	450	60	B	180
195	XR 700/500	PN16	700	500	60	B	180
196	XR 700/600	PN16	700	600	60	A	180
197	XR 800/80-4	PN16	800	80	40	B	190
198	XR 800/80	PN16	800	80	40	B	190
199	XR 800/100	PN16	800	100	40	B	190
200	XR 800/150	PN16	800	150	40	B	190
201	XR 800/200	PN16	800	200	40	B	190
202	XR 800/250	PN16	800	250	40	B	190
203	XR 800/300	PN16	800	300	40	B	190
204	XR 800/350	PN16	800	350	40	B	190
205	XR 800/400	PN16	800	400	60	B	190
206	XR 800/450	PN16	800	450	60	B	190
207	XR 800/500	PN16	800	500	60	B	190
208	XR 800/600	PN16	800	600	60	B	190
209	XR 800/700	PN16	800	700	60	A	190
