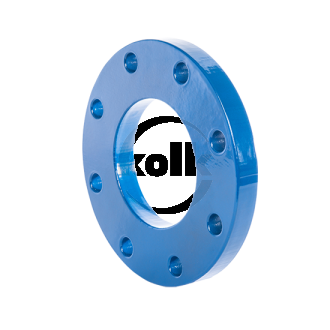

Distance block (VRM)

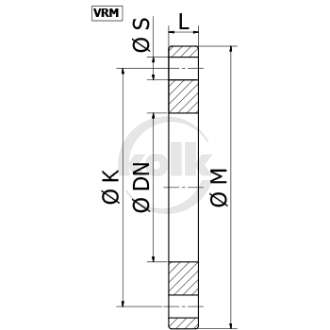

Kolk flanged fittings are made of steel. Distance blocks are available in every requested thickness with or without flangedrilling (see drawing). Specify thickness when ordering. Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

Sort	Article	PN	ø DN [mm]	ø M [mm]
0	VRM 50	PN10/16	50	165
1	VRM 65	PN10/16	65	185
2	VRM 80	PN10/16	80	200
3	VRM 100	PN10/16	100	220
4	VRM 125	PN10/16	125	250
5	VRM 150	PN10/16	150	285
6	VRM 200	PN10	200	340
7	VRM 250	PN10	250	395
8	VRM 300	PN10	300	445
9	VRM 350	PN10	350	505
10	VRM 400	PN10	400	565
11	VRM 450	PN10	450	615
12	VRM 500	PN10	500	670
13	VRM 600	PN10	600	780
14	VRM 700	PN10	700	895
15	VRM 800	PN10	800	1015
16	VRM 900	PN10	900	1115
17	VRM 1000	PN10	1000	1230
18	VRM 1200	PN10	1200	1455
19	VRM 200	PN16	200	340
20	VRM 250	PN16	250	405
21	VRM 300	PN16	300	460
22	VRM 350	PN16	350	520
23	VRM 400	PN16	400	580
24	VRM 450	PN16	450	640
25	VRM 500	PN16	500	715
26	VRM 600	PN16	600	840
27	VRM 700	PN16	700	910
28	VRM 800	PN16	800	1025
29	VRM 900	PN16	900	1125
30	VRM 1000	PN16	1000	1255
31	VRM 1200	PN16	1200	1485
