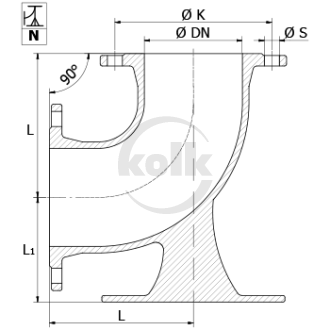

Duckfoot bend (N) PN10/16

Kolk flanged fittings are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Designed acc. to EN 545, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

Sort	Article	PN	ø DN [mm]	L [mm]	L1 [mm]	KG
0	N 50	PN10/16	50	150	90	12
1	N 65	PN10/16	65	165	100	12
2	N 80-4	PN10	80	165	110	12
3	N 80	PN10/16	80	165	110	12
4	N 100	PN10/16	100	180	125	17
5	N 125	PN10/16	125	200	140	22
6	N 150	PN10/16	150	220	160	30
7	N 200	PN10	200	260	190	46
8	N 250	PN10	250	350	225	74
9	N 300	PN10	300	400	255	104
10	N 350	PN10	350	450	290	138
11	N 400	PN10	400	500	320	178
12	N 450	PN10	450	550	355	235
13	N 500	PN10	500	600	385	286
14	N 600	PN10	600	700	450	432
15	N 700	PN10	700	800	480	680
16	N 800	PN10	800	900	540	890
17	N 900	PN10	900	1000	645	1160
18	N 1000	PN10	1000	1100	710	1580
19	N 1200	PN10	1200	1300	845	2430
20	N 200	PN16	200	260	190	46
21	N 250	PN16	250	350	225	74
22	N 300	PN16	300	400	255	104
23	N 350	PN16	350	450	290	142
24	N 400	PN16	400	500	320	186
25	N 450	PN16	450	550	355	246
26	N 500	PN16	500	600	385	314
27	N 600	PN16	600	700	450	480
28	N 700	PN16	700	800	480	705
29	N 800	PN16	800	900	540	870
30	N 900	PN16	900	1000	645	1260
31	N 1000	PN16	1000	1100	710	1680
32	N 1200	PN16	1200	1300	845	2610
