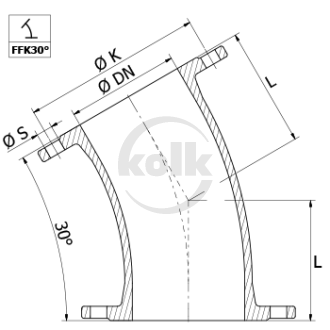

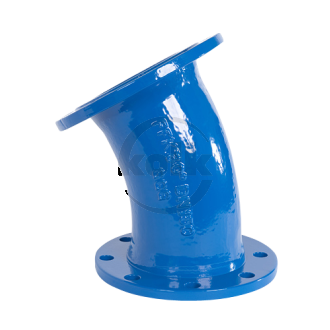

30° flanged bend (FFK 30°) PN10/16

Kolk flanged fittings are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Designed acc. to EN 545, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

Sort	Article	PN	ø DN [mm]	L [mm]	KG
0	FFK 50/30˚	PN10/16	50	150	9
1	FFK 65/30˚	PN10/16	65	165	10
2	FFK 80/30˚	PN10/16	80	130	10
3	FFK 100/30˚	PN10/16	100	140	12
4	FFK 125/30˚	PN10/16	125	150	16
5	FFK 150/30˚	PN10/16	150	160	19
6	FFK 200/30˚	PN10	200	180	29
7	FFK 250/30˚	PN10	250	210	42
8	FFK 300/30˚	PN10	300	255	60
9	FFK 350/30˚	PN10	350	165	65
10	FFK 400/30˚	PN10	400	183	72
11	FFK 450/30˚	PN10	450	255	90
12	FFK 500/30˚	PN10	500	220	110
13	FFK 600/30˚	PN10	600	309	210
14	FFK 700/30˚	PN10	700	346	360
15	FFK 800/30˚	PN10	800	383	495
16	FFK 900/30˚	PN10	900	420	580
17	FFK 1000/30˚	PN10	1000	455	760
18	FFK 1200/30˚	PN10	1200	530	1200
19	FFK 200/30˚	PN16	200	180	29
20	FFK 250/30˚	PN16	250	210	42
21	FFK 300/30˚	PN16	300	255	60
22	FFK 350/30˚	PN16	350	165	70
23	FFK 400/30˚	PN16	400	183	82
24	FFK 450/30˚	PN16	450	255	106
25	FFK 500/30˚	PN16	500	220	138
26	FFK 600/30˚	PN16	600	309	250
27	FFK 700/30˚	PN16	700	346	380
28	FFK 800/30˚	PN16	800	383	530
29	FFK 900/30˚	PN16	900	420	630
31	FFK 1200/30˚	PN16	1200	530	1320
