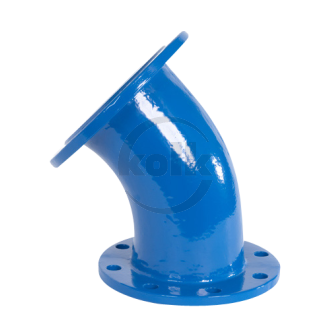

45° flanged bend (FFK 45°) PN10/16

Kolk flanged fittings are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Designed acc. to EN 545, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

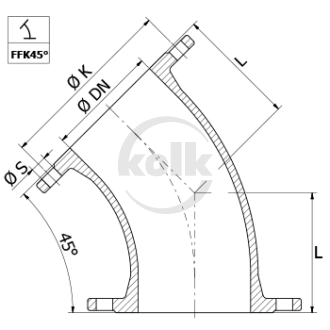

Sort	Article	PN	ø DN [mm]	L [mm]	KG
0	FFK 50/45˚	PN10/16	50	150	7
1	FFK 65/45˚	PN10/16	65	165	10
2	FFK 80/45˚-4	PN10	80	130	11
3	FFK 80/45˚	PN10/16	80	130	11
4	FFK 100/45˚	PN10/16	100	140	12
5	FFK 125/45˚	PN10/16	125	150	15
6	FFK 150/45˚	PN10/16	150	160	22
7	FFK 200/45˚	PN10	200	180	28
8	FFK 250/45˚	PN10	250	350	54
9	FFK 300/45˚	PN10	300	400	76
10	FFK 350/45˚	PN10	350	298	75
11	FFK 400/45˚	PN10	400	324	95
12	FFK 450/45˚	PN10	450	350	125
13	FFK 500/45˚	PN10	500	375	140
14	FFK 600/45˚	PN10	600	426	210
15	FFK 700/45˚	PN10	700	478	290
16	FFK 800/45˚	PN10	800	529	400
17	FFK 900/45˚	PN10	900	581	510
18	FFK 1000/45˚	PN10	1000	632	660
19	FFK 1200/45˚	PN10	1200	750	1060
20	FFK 200/45˚	PN16	200	180	28
21	FFK 250/45˚	PN16	250	350	54
22	FFK 300/45˚	PN16	300	400	76
23	FFK 350/45˚	PN16	350	298	82
24	FFK 400/45˚	PN16	400	324	106
25	FFK 450/45˚	PN16	450	350	145
26	FFK 500/45˚	PN16	500	375	170
27	FFK 600/45˚	PN16	600	426	260
28	FFK 700/45˚	PN16	700	478	320
29	FFK 800/45˚	PN16	800	529	438
30	FFK 900/45˚	PN16	900	581	560
31	FFK 1000/45˚	PN16	1000	632	740
32	FFK 1200/45˚	PN16	1200	750	1160
