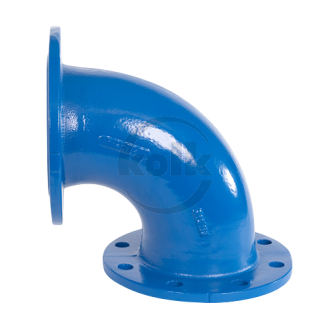

90° flanged bend (Q) PN10/16

Kolk flanged fittings are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Designed acc. to EN 545, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

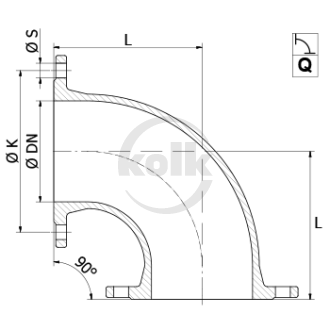

Sort	Article	PN	ø DN [mm]	L [mm]	KG
0	Q 50	PN10/16	50	150	7
1	Q 65	PN10/16	65	165	8
2	Q 80-4	PN10	80	165	9
3	Q 80	PN10/16	80	165	9
4	Q 100	PN10/16	100	180	12
5	Q 125	PN10/16	125	200	16
6	Q 150	PN10/16	150	220	20
7	Q 200	PN10	200	260	30
8	Q 250	PN10	250	350	50
9	Q 300	PN10	300	400	70
10	Q 350	PN10	350	450	90
11	Q 400	PN10	400	500	116
12	Q 450	PN10	450	550	190
13	Q 500	PN10	500	600	185
14	Q 600	PN10	600	700	276
15	Q 700	PN10	700	800	395
16	Q 800	PN10	800	900	542
17	Q 900	PN10	900	1000	710
18	Q 1000	PN10	1000	1100	920
19	Q 1200	PN10	1200	1300	1450
20	Q 200	PN16	200	260	36
21	Q 250	PN16	250	350	56
22	Q 300	PN16	300	400	80
23	Q 350	PN16	350	450	96
24	Q 400	PN16	400	500	126
25	Q 450	PN16	450	550	210
26	Q 500	PN16	500	600	210
27	Q 600	PN16	600	700	320
28	Q 700	PN16	700	800	420
29	Q 800	PN16	800	900	580
30	Q 900	PN16	900	1000	750
31	Q 1000	PN16	1000	1100	998
32	Q 1200	PN16	1200	1300	1550
