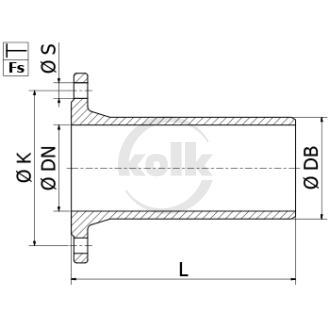

Flanged spigot pipe (FS) PN10/16

Kolk flanged fittings are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Designed acc. to EN 545, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662). The table contains only the standard lengths with puddle flange in the middle. Non standard lengths are possible.

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

Sort	Article	PN	ø DN [mm]	ø DB [mm]
0	FS 50	PN10/16	50	66
1	FS 65	PN10/16	65	86
2	FS 80	PN10/16	80	98
3	FS 100	PN10/16	100	118
4	FS 125	PN10/16	125	144
5	FS 150	PN10/16	150	170
6	FS 200	PN10	200	222
7	FS 250	PN10	250	274
8	FS 300	PN10	300	326
9	FS 350	PN10	350	378
10	FS 400	PN10	400	429
11	FS 450	PN10	450	477
12	FS 500	PN10	500	532
13	FS 600	PN10	600	635
14	FS 700	PN10	700	738
15	FS 800	PN10	800	842
16	FS 900	PN10	900	945
17	FS 1000	PN10	1000	1048
18	FS 1200	PN10	1200	1255
19	FS 200	PN16	200	222
20	FS 250	PN16	250	274
21	FS 300	PN16	300	326
22	FS 350	PN16	350	378
23	FS 400	PN16	400	429
24	FS 450	PN16	450	477
25	FS 500	PN16	500	532
26	FS 600	PN16	600	635
27	FS 700	PN16	700	738
28	FS 800	PN16	800	842
29	FS 900	PN16	900	945
30	FS 1000	PN16	1000	1048
31	FS 1200	PN16	1200	1255
