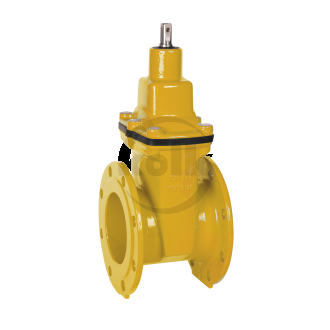

Flanged gate valves PN10/16 DIN F4 for gas

Kolk gate valves are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Designed acc. to EN 1074-2 (DIN 3352-4) and EN 1171, flange drilling acc. to EN 1092-2 (ISO 7005-2). Face to face acc. to EN 558-1 (DIN 3202-1 F4). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

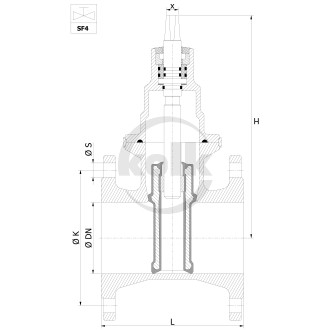

Sort	Article	PN	ø DN [mm]	L [mm]	X [mm]	H [mm]	KG
0	SFG4 50	PN10/16	50	150	14	214	9
1	SFG4 65	PN10/16	65	170	17	258	13
2	SFG4 80	PN10/16	80	180	17	284	15
3	SFG4 100	PN10/16	100	190	19	320	21
4	SFG4 125	PN10/16	125	200	19	387	27
5	SFG4 150	PN10/16	150	210	19	426	33
6	SFG4 200	PN10	200	230	24	531	60
7	SFG4 250	PN10	250	250	27	634	125
8	SFG4 300	PN10	300	270	27	742	130
9	SFG4 350	PN10	350	290	27	827	156
10	SFG4 400	PN10	400	310	32	953	190
11	SFG4 450	PN10	450	330	36	1032	410
12	SFG4 500	PN10	500	350	36	1153	530
13	SFG4 600	PN10	600	390	36	1291	660
14	SFG4 200	PN16	200	230	24	531	60
15	SFG4 250	PN16	250	250	27	634	125
16	SFG4 300	PN16	300	270	27	742	130
17	SFG4 350	PN16	350	290	27	827	156
18	SFG4 400	PN16	400	310	32	953	190
19	SFG4 450	PN16	450	330	36	1032	410
20	SFG4 500	PN16	500	350	36	1153	530
21	SFG4 600	PN16	600	390	36	1291	660
