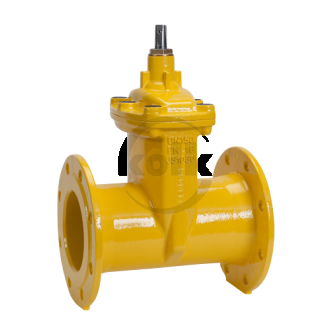

Flanged gate valves PN10/16 DIN F5 for gas

Kolk gate valves are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Designed acc. to EN 1074-2 (DIN 3352-4) and EN 1171, flange drilling acc. to EN 1092-2 (ISO 7005-2). Face to face acc. to EN 558-1 (DIN 3202-1 F5). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

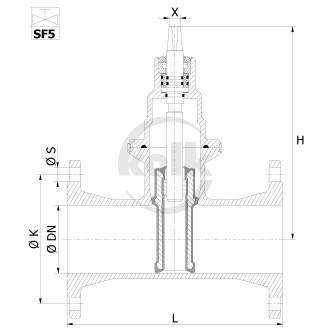

Sort	Article	PN	ø DN [mm]	L [mm]	X [mm]	H [mm]	KG
0	SFG5 50	PN10/16	50	250	14	214	10
1	SFG5 65	PN10/16	65	270	17	258	14
2	SFG5 80	PN10/16	80	280	17	284	16
3	SFG5 100	PN10/16	100	300	19	320	22
4	SFG5 125	PN10/16	125	325	19	387	28
5	SFG5 150	PN10/16	150	350	19	426	35
6	SFG5 200	PN10	200	400	24	531	62
7	SFG5 250	PN10	250	450	27	634	128
8	SFG5 300	PN10	300	500	27	742	135
9	SFG5 350	PN10	350	550	27	827	160
10	SFG5 400	PN10	400	600	32	953	194
11	SFG5 450	PN10	450	650	36	1032	445
12	SFG5 500	PN10	500	700	36	1153	465
13	SFG5 600	PN10	600	800	36	1291	710
14	SFG5 200	PN16	200	400	24	531	62
15	SFG5 250	PN16	250	450	27	634	128
16	SFG5 300	PN16	300	500	27	742	135
17	SFG5 350	PN16	350	550	27	827	160
18	SFG5 400	PN16	400	600	32	953	194
19	SFG5 450	PN16	450	650	36	1032	445
20	SFG5 500	PN16	500	700	36	1153	465
21	SFG5 600	PN16	600	800	36	1291	710
