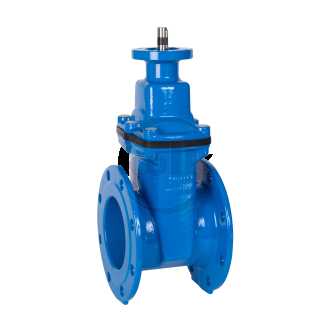

Flanged gate valves PN10/16 DIN F4 for wastewater with topflange for actuator

Kolk gate valves are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Designed acc. to EN 1074-2 (DIN 3352-4) and EN 1171, flange drilling acc. to EN 1092-2 (ISO 7005-2). Face to face acc. to EN 558-1 (DIN 3202-1 F4). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

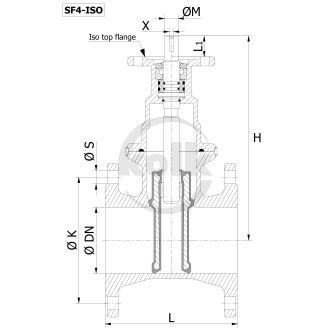

Sort	Article	PN	ø DN [mm]	L [mm]	X [mm]	L1 [mm]	H [mm]	Type	KG
0	SFR ISO 50	PN10/16	50	150	6	45	180	F10	10
1	SFR ISO 65	PN10/16	65	170	6	45	210	F10	14
2	SFR ISO 80	PN10/16	80	180	6	45	237	F10	16
3	SFR ISO 100	PN10/16	100	190	6	45	280	F10	22
4	SFR ISO 125	PN10/16	125	200	6	45	332	F10	28
5	SFR ISO 150	PN10/16	150	210	6	45	371	F10	35
6	SFR ISO 200	PN10	200	230	6	45	474	F10	62
7	SFR ISO 250	PN10	250	250	8	60	570	F14	127
8	SFR ISO 300	PN10	300	270	8	60	668	F14	130
9	SFR ISO 350	PN10	350	290	8	60	753	F14	158
10	SFR ISO 400	PN10	400	310	8	60	860	F14	190
11	SFR ISO 450	PN10	450	330	8	60	1062	F14	250
12	SFR ISO 500	PN10	500	350	8	60	1062	F14	290
13	SFR ISO 600	PN10	600	390	8	60	1230	F14	415
14	SFR ISO 700	PN10	700	430	8	60	1487	F14	830
15	SFR ISO 800	PN10	800	470	8	60	1649	F14	1400
16	SFR ISO 900	PN10	900	510	12	60	1820	F16	1870
17	SFR ISO 1000	PN10	1000	550	14	100	2010	F25	2200
18	SFR ISO 1200	PN10	1200	630	14	100	2417	F25	4200
