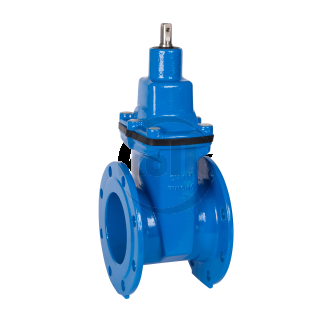

Flanged gate valves PN10/16 DIN F4 for wastewater

Kolk gate valves are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Designed acc. to EN 1074-2 (DIN 3352-4) and EN 1171, flange drilling acc. to EN 1092-2 (ISO 7005-2). Face to face acc. to EN 558-1 (DIN 3202-1 F4). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662). From DN 700 upwards standard equipped with gearbox.

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

Sort	Article	PN	ø DN [mm]	L [mm]	X [mm]	H [mm]	KG
0	SFR4 50	PN10/16	50	150	14	214	10
1	SFR4 65	PN10/16	65	170	17	258	14
2	SFR4 80	PN10/16	80	180	17	284	16
3	SFR4 100	PN10/16	100	190	19	320	22
4	SFR4 125	PN10/16	125	200	19	387	28
5	SFR4 150	PN10/16	150	210	19	426	35
6	SFR4 200	PN10	200	230	24	531	62
7	SFR4 250	PN10	250	250	27	634	128
8	SFR4 300	PN10	300	270	27	742	135
9	SFR4 350	PN10	350	290	27	827	160
10	SFR4 400	PN10	400	310	32	953	194
11	SFR4 450	PN10	450	330	36	1032	445
12	SFR4 500	PN10	500	350	36	1153	465
13	SFR4 600	PN10	600	390	36	1291	710
14	SFR4 700	PN10	700	430	Ø30	1570	830
15	SFR4 800	PN10	800	470	Ø30	1730	1400
16	SFR4 900	PN10	900	510	Ø30	2340	1870
17	SFR4 1000	PN10	1000	550	Ø30	2680	2200
18	SFR4 1200	PN10	1200	630	Ø30	2750	4200
