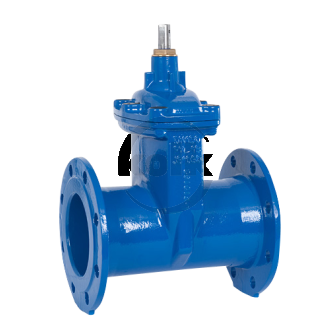

Flanged gate valves PN10/16 DIN F5 for wastewater

Kolk gate valves are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Designed acc. to EN 1074-2 (DIN 3352-4) and EN 1171, flange drilling acc. to EN 1092-2 (ISO 7005-2). Face to face acc. to EN 558-1 (DIN 3202-1 F5). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662). From DN 700 upwards standard equipped with gearbox.

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

Sort	Article	PN	ø DN [mm]	L [mm]	X [mm]	H [mm]	KG
0	SFR5 50	PN10/16	50	250	14	214	10
1	SFR5 65	PN10/16	65	270	17	258	14
2	SFR5 80	PN10/16	80	280	17	284	16
3	SFR5 100	PN10/16	100	300	19	320	22
4	SFR5 125	PN10/16	125	325	19	387	28
5	SFR5 150	PN10/16	150	350	19	426	35
6	SFR5 200	PN10	200	400	24	531	62
7	SFR5 250	PN10	250	450	27	634	128
8	SFR5 300	PN10	300	500	27	742	135
9	SFR5 350	PN10	350	550	27	827	160
10	SFR5 400	PN10	400	600	32	953	194
11	SFR5 450	PN10	450	650	36	1032	445
12	SFR5 500	PN10	500	700	36	1153	465
13	SFR5 600	PN10	600	800	36	1291	710
14	SFR5 700	PN10	700	900	Ø30	1570	880
15	SFR5 800	PN10	800	1000	Ø30	1730	1650
16	SFR5 900	PN10	900	1100	Ø30	2340	1990
17	SFR5 1000	PN10	1000	1200	Ø30	2680	2900
18	SFR5 1200	PN10	1200	1400	Ø30	2750	5200
