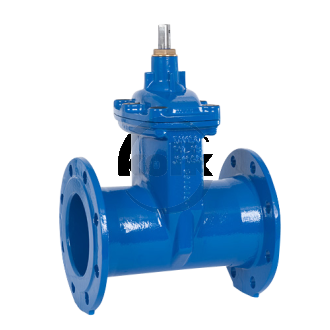

Flanged gate valves PN10/16 DIN F5

Kolk gate valves are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Designed acc. to EN 1074-2 (DIN 3352-4) and EN 1171, flange drilling acc. to EN 1092-2 (ISO 7005-2). Face to face acc. to EN 558-1 (DIN 3202-1 F5). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662). From DN 700 upwards standard equipped with gearbox.

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

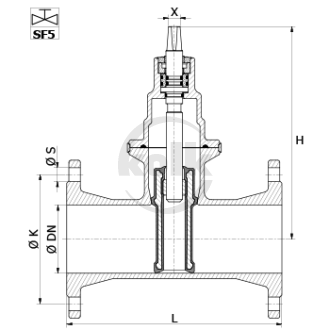

Sort	Article	PN	ø DN [mm]	L [mm]	X [mm]	H [mm]	KG
0	SF5 50	PN10/16	50	250	14	214	10
1	SF5 65	PN10/16	65	270	17	258	14
2	SF5 80	PN10/16	80	280	17	284	16
3	SF5 100	PN10/16	100	300	19	320	22
4	SF5 125	PN10/16	125	325	19	387	28
5	SF5 150	PN10/16	150	350	19	426	35
6	SF5 200	PN10	200	400	24	531	62
7	SF5 250	PN10	250	450	27	634	128
8	SF5 300	PN10	300	500	27	742	135
9	SF5 350	PN10	350	550	27	827	160
10	SF5 400	PN10	400	600	32	953	194
11	SF5 450	PN10	450	650	36	1032	445
12	SF5 500	PN10	500	700	36	1153	465
13	SF5 600	PN10	600	800	36	1291	710
14	SF5 700	PN10	700	900	Ø30	1570	880
15	SF5 800	PN10	800	1000	Ø30	1730	1650
16	SF5 900	PN10	900	1100	Ø30	2340	1990
17	SF5 1000	PN10	1000	1200	Ø30	2680	2900
18	SF5 1200	PN10	1200	1400	Ø30	2750	5200
19	SF5 200	PN16	200	400	24	531	62
20	SF5 250	PN16	250	450	27	634	128
21	SF5 300	PN16	300	500	27	742	135
22	SF5 350	PN16	350	550	27	827	160
23	SF5 400	PN16	400	600	32	953	194
24	SF5 450	PN16	450	650	36	1032	445
25	SF5 500	PN16	500	700	36	1153	465
26	SF5 600	PN16	600	800	36	1291	710
27	SF5 700	PN16	700	900	Ø30	1570	880
28	SF5 800	PN16	800	1000	Ø30	1730	1650
29	SF5 900	PN16	900	1100	Ø30	2340	1990
30	SF5 1000	PN16	1000	1200	Ø30	2680	2900
31	SF5 1200	PN16	1200	1400	Ø30	2750	5200
