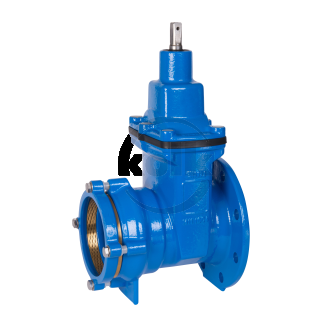

Flanged/tensile socket gate valves
Flanged/tensile socket gate valves

Flanged/tensile socket gate valves

Kolk gate valves are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Designed acc. to EN 1074-2 (DIN 3352-4) and EN 1171, flange drilling acc. to EN 1092-2 (ISO 7005-2) and tensile socket connection for PE/PVC pipe. Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

  • Experience since 1922
  • Flexible and reliable
  • Inhouse production and coating
  • Wide range of products on stock
  • Customized Products and Service

Refine your search

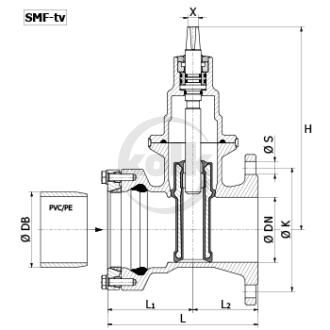

Sort Article PN ø DN [mm] ø DB [mm] L [mm] X [mm] L1 [mm] L2 [mm] H [mm] KG More info Qty Select
0 SMF-tv 80/63 PN10/16 80 63 220 17 130 90 284 0
1 SMF-tv 80/75 PN10/16 80 75 220 17 130 90 284 0
2 SMF-tv 100 PN10/16 100 110 230 19 135 95 320 0
3 SMF-tv 150 PN10/16 150 160 285 19 180 105 426 0
