Knife gate valves PN10 A2/A4
Knife gate valves PN10 A2/A4

Knife gate valves PN10 A2/A4

Kolk knife gate valves are made of ductile iron EN-GJS-400-15 (EN 1563). Flange drilling acc. to EN 1092-2 (ISO 7005-2). Face to face dim. EN 558-1. Epoxy coating acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back
  • Experience since 1922
  • Flexible and reliable
  • Inhouse production and coating
  • Wide range of products on stock
  • Customized Products and Service

Refine your search

Undo

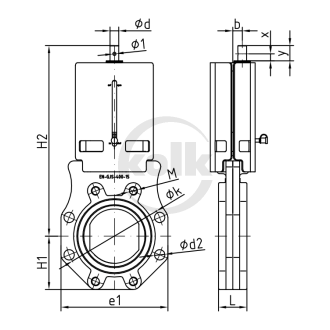

Sort Article PN A2/A4 ø DN [mm] L [mm] H1 [mm] H2 [mm] M KG More info Qty Select
0 MAF DN50 A2 PN10 A2 50 43 70 268 4xM16 (13 mm) 5
0 MAF DN65 A2 PN10 A2 65 46 80 295 4xM16 (13 mm) 7
0 MAF DN80 A2 PN10 A2 80 46 90 320 4xM16 (12 mm) 8
0 MAF DN100 A2 PN10 A2 100 52 100 350 4xM16 (12 mm) 10
0 MAF DN125 A2 PN10 A2 125 56 115 400 4xM16 (12 mm) 15
0 MAF DN150 A2 PN10 A2 150 56 130 465 4xM20 (12 mm) 20
0 MAF DN200 A2 PN10 A2 200 60 160 565 4xM20 (15 mm) 30
0 MAF DN250 A2 PN10 A2 250 68 200 650 8xM20 (16 mm) 48
0 MAF DN300 A2 PN10 A2 300 78 225 760 8xM20 (16 mm) 64
0 MAF DN350 A2 PN10 A2 350 78 260 910 12xM20 (20 mm) 104
0 MAF DN400 A2 PN10 A2 400 102 290 1025 12xM24 (25 mm) 150
0 MAF DN500 A2 PN10 A2 500 127 360 1220 16xM24 (30 mm) 250
0 MAF DN600 A2 PN10 A2 600 154 390 1414 16xM27 (30 mm) 321
0 MAF DN50 A4 PN10 A4 50 43 70 268 4xM16 (13 mm) 5
0 MAF DN65 A4 PN10 A4 65 46 80 295 4xM16 (13 mm) 7
0 MAF DN80 A4 PN10 A4 80 46 90 320 4xM16 (12 mm) 8
0 MAF DN100 A4 PN10 A4 100 52 100 350 4xM16 (12 mm) 10
0 MAF DN125 A4 PN10 A4 125 56 115 400 4xM16 (12 mm) 15
0 MAF DN150 A4 PN10 A4 150 56 130 465 4xM20 (12 mm) 20
0 MAF DN200 A4 PN10 A4 200 60 160 565 4xM20 (15 mm) 30
0 MAF DN250 A4 PN10 A4 250 68 200 650 8xM20 (16 mm) 48
0 MAF DN300 A4 PN10 A4 300 78 225 760 8xM20 (16 mm) 64
0 MAF DN350 A4 PN10 A4 350 78 260 910 12xM20 (20 mm) 104
0 MAF DN400 A4 PN10 A4 400 102 290 1025 12xM24 (25 mm) 150
0 MAF DN500 A4 PN10 A4 500 127 360 1220 16xM24 (30 mm) 250
0 MAF DN600 A4 PN10 A4 600 154 390 1414 16xM27 (30 mm) 321
