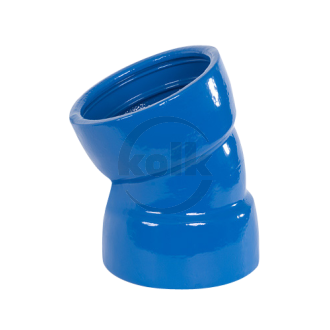

Double socket bend 22½° (MMK 22½°) PN10/16

Kolk Tyton fittings are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Design acc. to EN 545, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

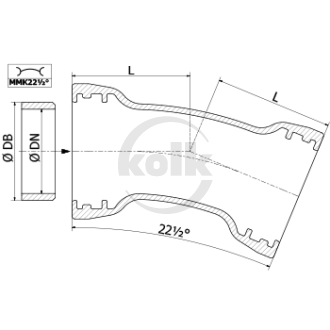

Sort	Article	PN	ø DN [mm]	ø DB [mm]	L [mm]	KG
0	MMK 80-22½˚	PN10/16	80	98	40	7
1	MMK 100-22½˚	PN10/16	100	118	45	9
2	MMK 125-22½˚	PN10/16	125	144	50	11
3	MMK 150-22½˚	PN10/16	150	170	55	14
4	MMK 200-22½˚	PN10/16	200	222	65	21
5	MMK 250-22½˚	PN10/16	250	274	75	30
6	MMK 300-22½˚	PN10/16	300	326	85	41
7	MMK 350-22½˚	PN10/16	350	378	95	50
8	MMK 400-22½˚	PN10/16	400	429	110	71
9	MMK 450-22½˚	PN10/16	450	477	120	80
10	MMK 500-22½˚	PN10/16	500	532	130	100
11	MMK 600-22½˚	PN10/16	600	635	150	140
12	MMK 700-22½˚	PN10/16	700	738	175	232
13	MMK 800-22½˚	PN10/16	800	842	195	310
14	MMK 900-22½˚	PN10/16	900	948	220	450
15	MMK 1000-22½˚	PN10/16	1000	1048	240	570
16	MMK 1200-22½˚	PN10/16	1200	1255	260	890
