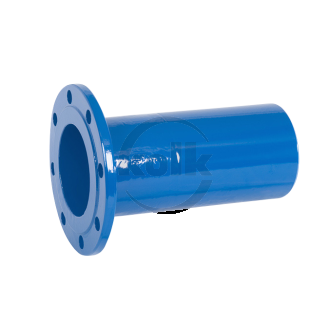

Flange-spigot (F) PN10/16

Kolk Tyton fittings are made of ductile iron GJS-400/500 (DIN1693 GGG-40/50). Design acc. to EN 545, flange drilling acc. to EN 1092-2 (ISO 7005-2). Epoxy coated (Resicoat®) acc. to EN 14901 (DIN 30677-2) and GSK certified (RAL-GZ 662).

Download Datasheet

Advice from our experts?

+31 (0)74 - 291 89 61

info@kolkbv.nl

Call me back

Experience since 1922
Flexible and reliable
Inhouse production and coating
Wide range of products on stock
Customized Products and Service

Compare selected items

Add selected items to quote

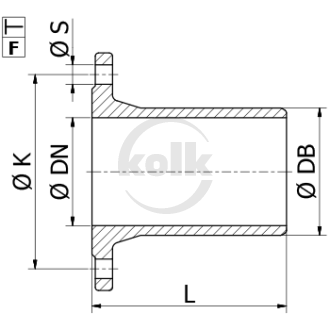

Sort	Article	PN	ø DN [mm]	ø DB [mm]	KG
0	F 50	PN10/16	50	66	5
1	F 65	PN10/16	65	86	6
2	F 80	PN10/16	80	98	8
3	F 100	PN10/16	100	118	9
4	F 125	PN10/16	125	144	12
5	F 150	PN10/16	150	170	16
6	F 200	PN10	200	222	24
7	F 250	PN10	250	274	32
8	F 300	PN10	300	326	43
9	F 350	PN10	350	378	53
10	F 400	PN10	400	429	65
11	F 450	PN10	450	477	85
12	F 500	PN10	500	532	94
13	F 600	PN10	600	635	135
14	F 700	PN10	700	738	180
15	F 800	PN10	800	842	230
16	F 900	PN10	900	945	270
17	F 1000	PN10	1000	1048	328
18	F 1200	PN10	1200	1255	460
19	F 200	PN16	200	222	24
20	F 250	PN16	250	274	32
21	F 300	PN16	300	326	43
22	F 350	PN16	350	378	55
23	F 400	PN16	400	429	70
24	F 450	PN16	450	477	90
25	F 500	PN16	500	532	110
26	F 600	PN16	600	635	160
27	F 700	PN16	700	738	195
28	F 800	PN16	800	842	245
29	F 900	PN16	900	945	300
30	F 1000	PN16	1000	1048	370
31	F 1200	PN16	1200	1255	520
